Condition:New
Brand:FESTO
Model:MA-40-16-1/8-EN-DPA
Code:MA-40-16-1/8-EN-DPAFES
Weight:1.000 KG
MOQ:0
Quantity
On Hand    Group Stock    ETA Delivery    1-2 Weeks
Shipping time may vary.
VitalMRO rep will advise.


 ~

Product Filter

Clear All

  • Product
  • Attribute
  • Price
  • Add To Cart
  • Products Detail
  • Products Q&A
Mobile phone purchase
goods qr code
Add To Cart
Price:
Quantity:
Inventory  PcsAccount Inventory  Pcs

Products Detail

Replacement Suggest:


VitalMRO is Authorized Distributor for This Product.

Display range
0 bar ... 16 bar
Type code
MA
Symbol
00991463
Conforms to standard
EN 837-1
Pressure gauge nominal size
40
Explosion prevention and protection
Observe the information on the certificate
Zone 1 (ATEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 22 (ATEX)
Structural design

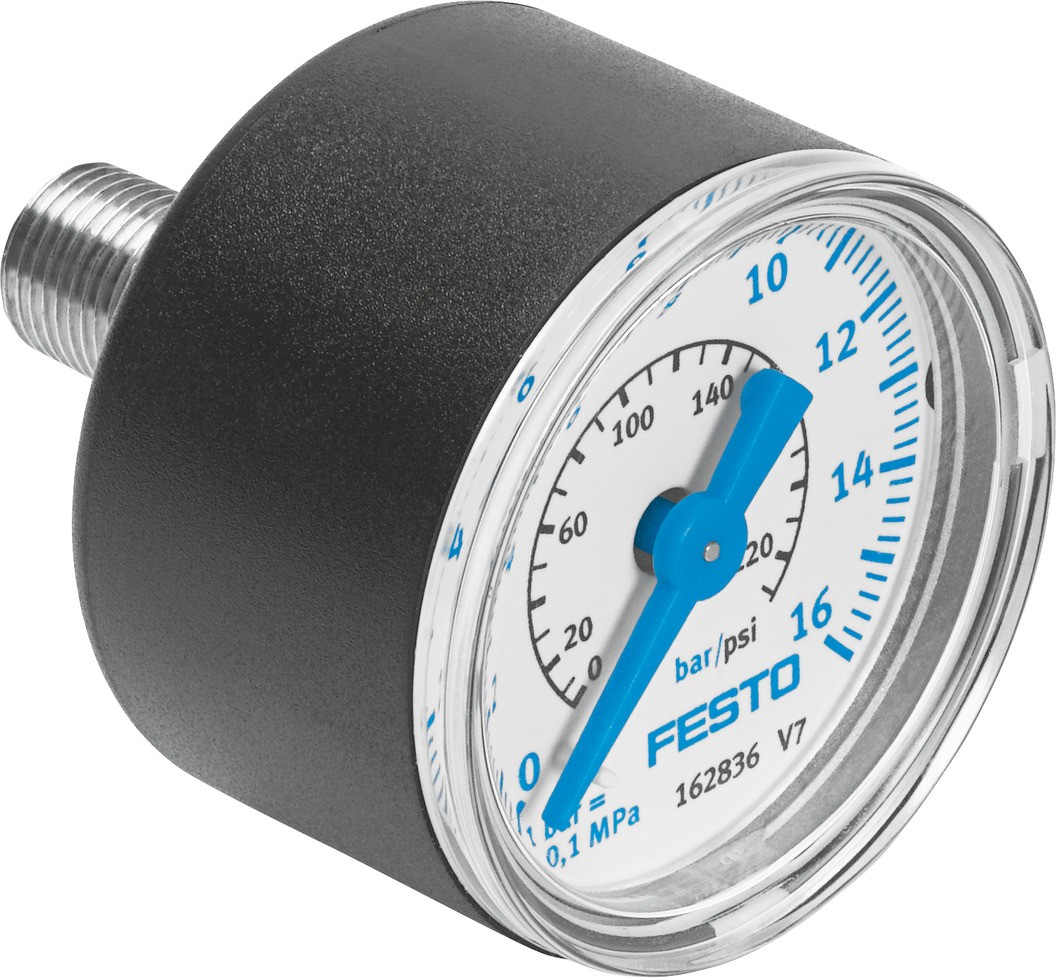

Bourdon tube pressure gauge
Type of mounting
Line installation
Operating medium
Inert gas
Neutral liquids
Operating pressure
0 MPa ... 1.6 MPa
Operating pressure
0 bar ... 16 bar
Operating pressure
0 psi ... 232 psi
Intermittent load factor
0.66
Measurement accuracy class
2.5
Degree of protection
IP43
Temperature of medium
-20 °C ... 60 °C
Ambient temperature
-20 °C ... 60 °C
Note on materials
RoHS-compliant
Connection position
Centered on rear side
Pneumatic connection
R1/8
Materials in contact with the media
Brass
Material of screwed trunnion
Brass
Housing material
ABS
Inspection window material
PS
Housing colour
Black
Product weight
60 g
Information on operating and pilot media
No acetylene
No oxygen


100 Rate %
