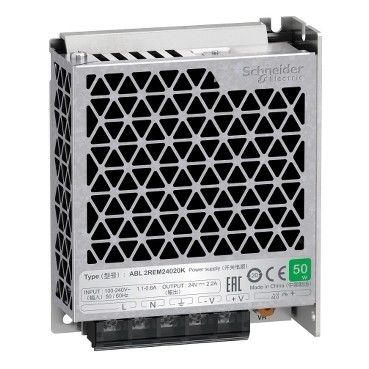

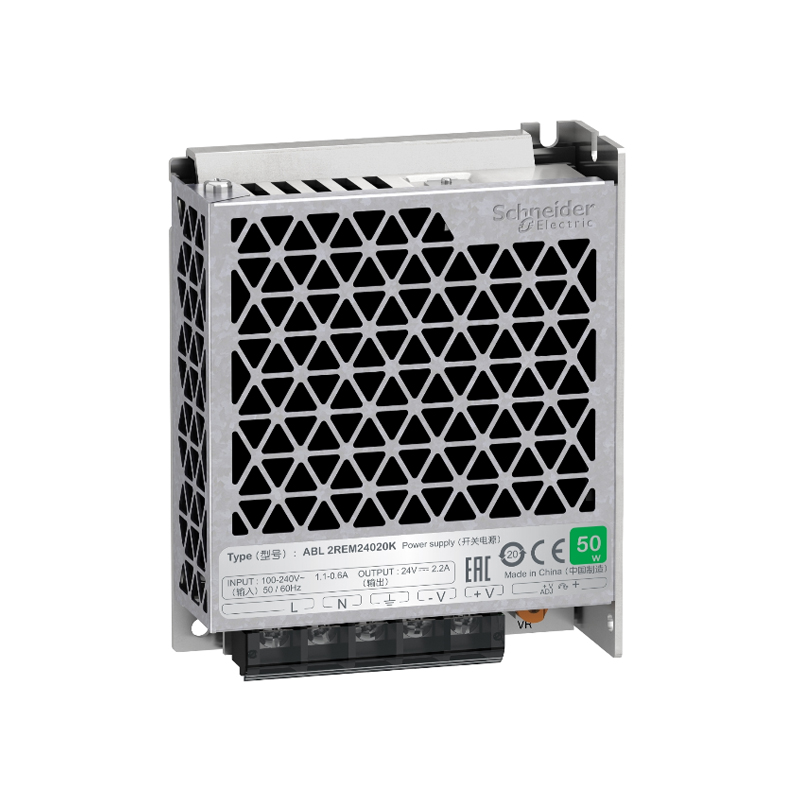

| range of product | Easy Modicon ABL2 | |
|---|---|---|
| product or component type | Power supply | |
| power supply type | Regulated switch mode | |
| rated power in W | 50 W | |
| input voltage | 100...240 V AC single phase | |
| output voltage | 24 V DC | |
| power supply output current | 2.2 A | |
| operating position | Any position | |
| vibration resistance | 4 gn (f= 10…500 Hz) conforming to EN/IEC 61131-2 | |
| name of test | Conducted interference conforming to EN 61000-6-4 level A |
| input voltage limits | 85...264 V | |
|---|---|---|
| network frequency | 47...63 Hz | |
| inrush current | 45 A at 100...240 V AC | |
| cos phi | 0.45 | |
| efficiency | 88 % | |
| power dissipation in W | 6.8 W | |
| current consumption | 0.6 A at 240 V | |
| input protection type | Integrated fuse (not interchangeable) | |
| output voltage limits | 20.4...27.6 V | |
| line and load regulation | +/- 1 % | |
| holding time | >= 12 ms at 115 V | |
| output protection type | Against overload, protection technology: 1.1...1.5 x In Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 1.1...1.5 x In | |
| connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 | |
| marking | CE | |
| mounting support | DIN rail with accessory Panel mounting with accessory | |
| operating altitude | 5000 m | |
| output coupling | Series | |
| overvoltage category | II | |
| meantime between failure [MTBF] | 720600 h at 25 °C | |
| status LED | 1 LED (green)output voltage | |
| width | 82 mm | |
| height | 99 mm | |
| depth | 30 mm | |
| net weight | 0.25 kg |
