| range of product | C120 | |
|---|---|---|
| range | Acti 9 | |

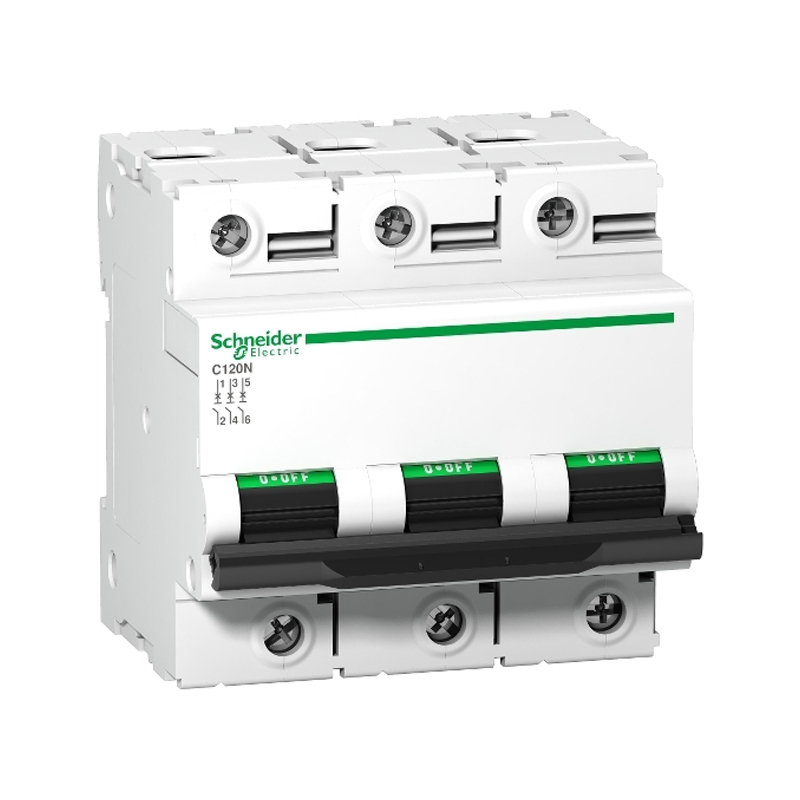

| product name | C120 | |
| product or component type | Miniature circuit-breaker | |
| device short name | C120N | |
| device application | Distribution | |
| poles description | 3P | |
| number of protected poles | 3 | |
| [In] rated current | 100 A at 30 °C | |
| network type | AC | |
| trip unit technology | Thermal-magnetic | |
| curve code | C | |
| breaking capacity | 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2 | |
| suitability for isolation | Yes conforming to IEC 60947-2 |
| network frequency | 50/60 Hz | |
|---|---|---|
| [Ue] rated operational voltage | <= 375 V DC 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz 230...400 V AC 50/60 Hz | |
| magnetic tripping limit | 5...10 x In | |
| [Ics] rated service breaking capacity | 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 10 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC | |
| limitation class | 3 conforming to EN/IEC 60947-2 | |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 | |
| contact position indicator | Yes | |
| control type | Toggle | |
| local signalling | ON/OFF indication | |
| mounting mode | Clip-on | |
| mounting support | 35 mm symmetrical DIN rail | |
| comb busbar and distribution block compatibility | NO | |
| 9 mm pitches | 9 | |
| height | 81 mm | |
| width | 81 mm | |
| depth | 73 mm | |
| net weight | 0.615 kg | |
| colour | White | |
| mechanical durability | 20000 cycles | |
| electrical durability | 5000 cycles conforming to IEC 60947-2 | |
| connections - terminals | Tunnel type terminals1…50 mm² rigid Tunnel type terminals1.5…35 mm² flexible | |
| wire stripping length | 15 mm | |
| tightening torque | 3.5 N.m | |
| earth-leakage protection | Separate block |
