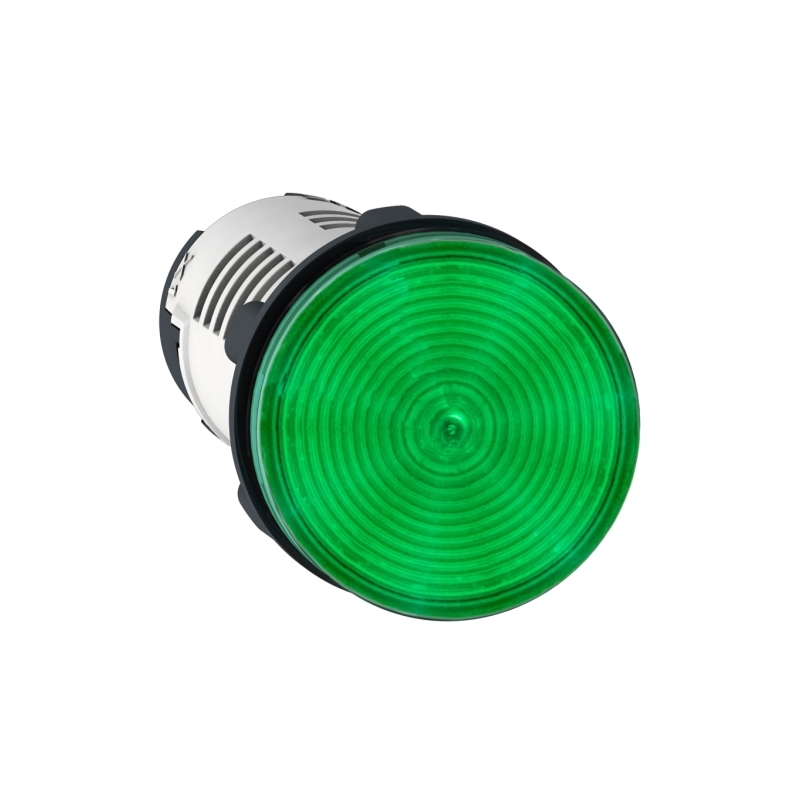

| range of product | Harmony XB7 | |
|---|---|---|
| product or component type | Pilot light | |
| device short name | XB7 | |
| mounting diameter | 22 mm | |
| sale per indivisible quantity | 10 | |
| shape of signaling unit head | Round | |
| cap/operator or lens colour | Green | |
| light source | LED | |
| bulb base | Integral LED | |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz | |
| device presentation | Monolithic product |
| height | 29 mm | |
|---|---|---|
| width | 29 mm | |
| depth | 54 mm | |
| terminals description ISO n°1 | (X1-X2)PL | |
| net weight | 0.02 kg | |
| device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 | |
| fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm | |
| fixing mode | Fixing nut beneath head: 2…2.4 N.m | |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 | |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 | |
| shape of screw head | Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver | |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 | |
| signalling type | Steady | |
| supply voltage limits | 195…264 V AC | |
| current consumption | 16...20 mA | |
| service life | 70000 h at rated voltage and 25 °C |
