VitalMRO is Authorized Distributor for This Product.

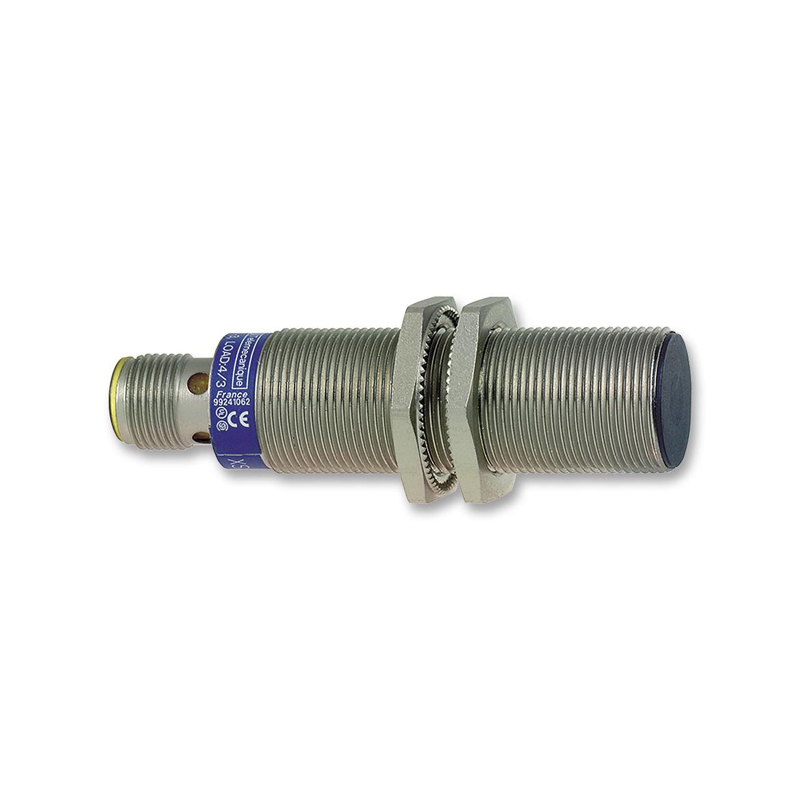

| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS1 |
| sensor design | Cylindrical M18 |
| size | 72 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| type of output signal | Discrete |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 5 mm |
| discrete output function | 1 NO or 1 NC programmable |
| output circuit type | DC |
| discrete output type | PNP and NPN |
| electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
thread type M18 x 1 detection face Frontal front material PPS enclosure material Nickel plated brass operating zone 0…4 mm differential travel 1...15% of Sr status LED Output state: 1 LED (yellow) supply voltage limits 10…36 V DC switching frequency <= 2000 Hz maximum voltage drop <2.6 V (closed) current consumption 0...10 mA no-load maximum delay first up 5 ms maximum delay response 0.15 ms maximum delay recovery 0.35 ms marking CE threaded length 51 mm length 72 mm
