| range | TeSys | |
|---|---|---|

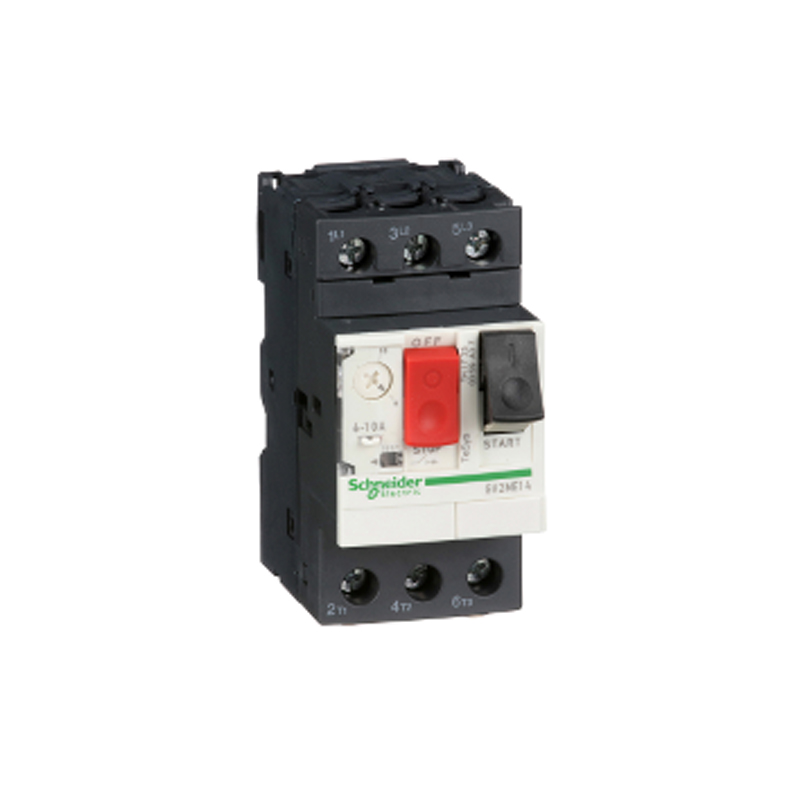

| product name | TeSys GV2 | |
| product or component type | Circuit breaker | |
| device short name | GV2ME | |
| device application | Motor | |
| trip unit technology | Thermal-magnetic |
| poles description | 3P | |
|---|---|---|
| network type | AC | |
| utilisation category | AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2 | |
| network frequency | 50/60 Hz conforming to IEC 60947-4-1 | |
| fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) | |
| operating position | Any position | |
| motor power kW | 3 kW at 400/415 V AC 50/60 Hz 4 kW at 400/415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 5.5 kW at 690 V AC 50/60 Hz 7.5 kW at 690 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz | |
| breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Push-button | |
| [In] rated current | 10 A | |
| thermal protection adjustment range | 6…10 A | |
| magnetic tripping current | 138 A | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | IEC 60947-2 6 kV | |
| power dissipation per pole | 2.5 W | |
| mechanical durability | 100000 cycles | |
| electrical durability | 100000 cycles for AC-3 at 440 V | |
| maximum operating rate | 25 cyc/h | |
| rated duty | Continuous conforming to IEC 60947-4-1 | |
| tightening torque | 1.7 N.m on screw clamp terminals | |
| suitability for isolation | Yes conforming to IEC 60947-1 | |
| phase failure sensitivity | Yes conforming to IEC 60947-4-1 | |
| height | 89 mm | |
| width | 45 mm | |
| depth | 78.5 mm | |
| net weight | 0.26 kg |
