VitalMRO is Authorized Distributor for This Product.

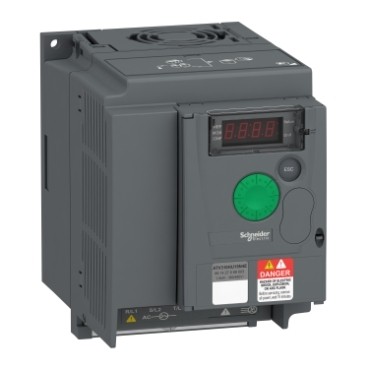

| range of product | Easy Altivar 310 | |
|---|---|---|
| product or component type | Variable speed drive | |
| product specific application | Simple machine | |
| assembly style | With heat sink | |
| device short name | ATV310 | |
| network number of phases | Three phase | |
| [Us] rated supply voltage | 380...460 V - 15...10 % | |
| motor power kW | 1.5 kW | |
| motor power hp | 2 hp | |
| noise level | 50 dB |
<td class="pes-text-left" style="b
| product destination | Asynchronous motors | |
|---|---|---|
| quantity per set | Set of 1 | |
| EMC filter | Without EMC filter | |
| type of cooling | Integrated fan | |
| supply frequency | 50/60 Hz +/- 5 % | |
| communication port protocol | Modbus | |
| connector type | RJ45 (on front face) for Modbus | |
| physical interface | 2-wire RS 485 for Modbus | |
| transmission frame | RTU for Modbus | |
| transmission rate | 4800 bit/s 9600 bit/s 19200 bit/s 38400 bit/s | |
| number of addresses | 1…247 for Modbus | |
| communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) | |
| line current | 5.4 A 54.1 A | |
| apparent power | 4.3 kVA 35.7 kVA | |
| prospective line Isc | 5 kA 5 kA | |
| continuous output current | 4.1 A at 4 kHz 43 A at 4 kHz | |
| maximum transient current | 6.2 A for 60 s 47.3 A for 60 s | |
| power dissipation in W | 51.82 W at In 588 W at In | |
| speed drive output frequency | 0.5…400 Hz | |
| nominal switching frequency | 4 kHz | |
| switching frequency | 2...12 kHz adjustable | |
| speed range | 1…20 | |
| transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor | |
| braking torque | Up to 150 % of nominal motor torque with braking resistor at high inertia Up to 70 % of nominal motor torque without braking resistor | |
| asynchronous motor control profile | Energy saving ratio Energy saving ratio Sensorless flux vector control | |
| motor slip compensation | Adjustable Adjustable | |
| output voltage | 380...460 V three phase | |
| electrical connection | Terminal, clamping capacity: 1.5...2.5 mm² (L1, L2, L3, PA/+, PB, U, V, W) | |
| tightening torque | 0.8…1 N.m | |
| insulation | Electrical between power and control | |
| supply | Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection | |
| analogue input number | 1 | |
| analogue input type | Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm | |
| discrete input number | 4 | |
| discrete input type | Programmable LI1...LI4 24 V 18...30 V | |
|
