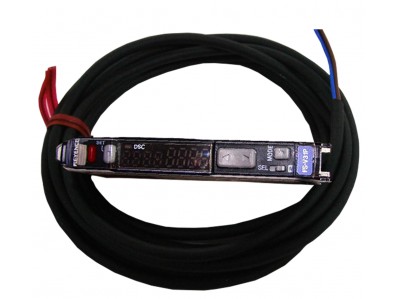

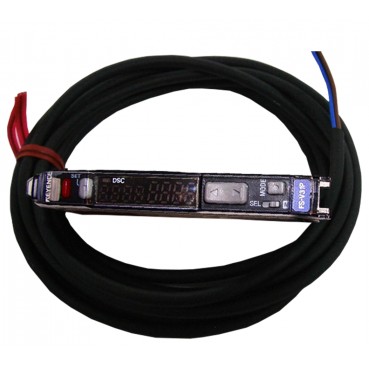

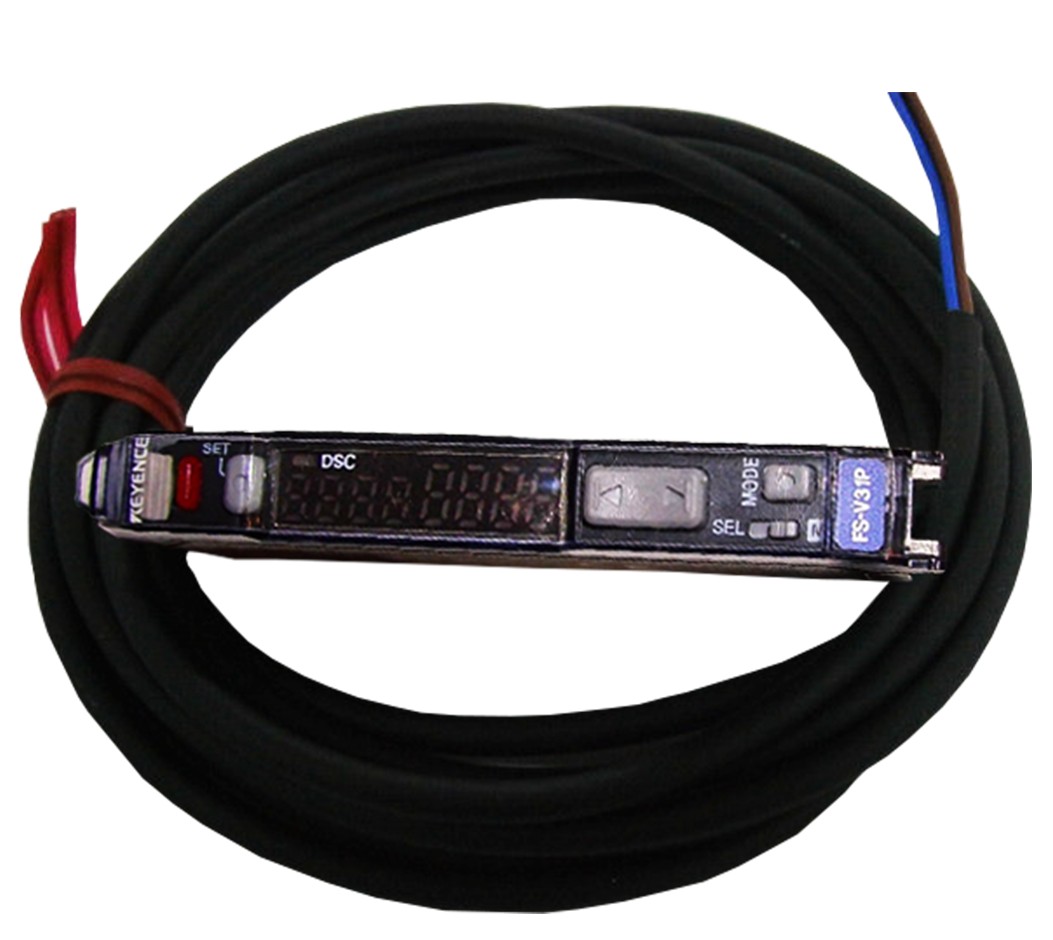

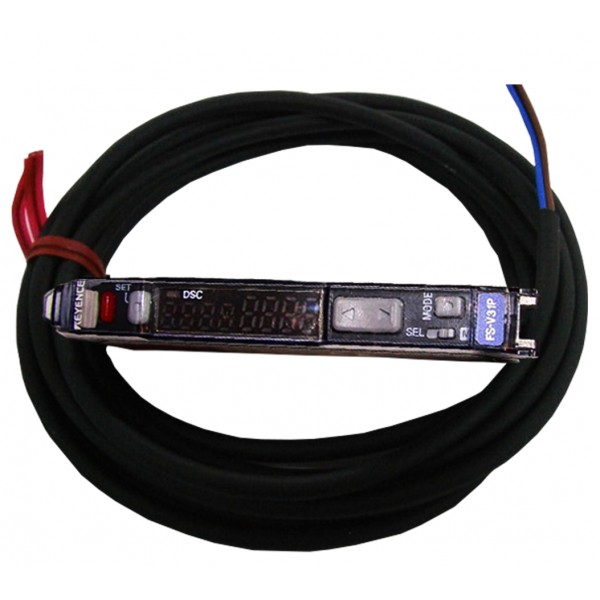

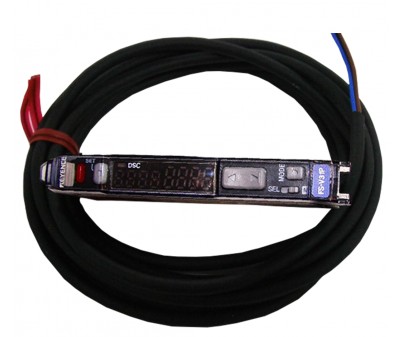

KEYENCE FS-V31P Sensor Amplifier

Mobile phone purchase

Condition：New

Brand：KEYENCE

Model：FS-V31P

Code：FS-V31PKEY

Weight：140 Gram

MOQ：0

Operating Voltage ：12 - 24 VDC

Output Type：PNP

More parameters>>

Add To Cart

Buy Now Request Quote

Add to Order Template Become Supplier

ETA Delivery:

Shipping time may vary.
VitalMRO rep will advise.

Local Stock:

VitalMRO Group Stock:

Offer Price:

Quantity:

Add To Cart

VitalMRO

Related classification

Power Transmission

Air Control

Filtration and Cleaning

Other similar brands

New
Recom
Hot

GATES 180XL PowerGrip Belt 20817DS020, 20817DS021

Login To View
PANASONIC X004-064 Bushing

Login To View
SENATOR SEN5829220K 1/2" Sq.Dr. 23 Pc Metric Socketset

Login To View

SCHNEIDER ATV610D18N4 Inverter Variable Speed Drive 8.5KW/25HP 380-415V IP20

Login To View
SCHNEIDER ATV310H075N4E Inverter, 3Phase, 0.75KW 1HP 380-460V

Login To View
SCHNEIDER ELECTRIC XVBC2B4 Tower Light LED - Red, Ø70, 24 V AC/DC

Login To View

SCHNEIDER ATV610D18N4 Inverter Variable Speed Drive 8.5KW/25HP 380-415V IP20

Login To View
SCHNEIDER ELECTRIC XB5-AD33C Selector Switch

Login To View
SCHNEIDER ATV610D75N4 Speed Drive 75kW 3 Phases 380-415 V

Login To View

Recent browse

Clear

KEYENCE PZ-G62N Sensor

Request Quote

Products Detail
Specification parameter
Products Q&A

Mobile phone purchase

Add To Cart

Price：

Quantity：

Inventory PcsAccount Inventory Pcs

Confirm cancel

Products Detail

Replacement Suggest：

VitalMRO is NOT an authorized distributor for This Product.

SPECIFICATIONS

Model		FS-V31P
Type		1-output with cable
Output		PNP
Main unit/Expansion unit		Main unit
Control output		1 output
Monitor output (1 to 5 V)		N/A
External input
Connector		―
Light source		Red, 4-element LED (Wavelength： 640 nm)
Response time		33 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /16 ms (MEGA TURBO)
Output selection		LIGHT-ON/DARK-ON (switch-selectable)
Display indicator		Operation indicator: Red LED/Dual digital monitor: Dual 7-segment display, Preset Value (4-digit green LED indicator) and Current Value (4-digit red LED indicator) illuminated together. Current Value range: 0 to 64,512; Excess gain: 0P to 999P, Hold function: Possible to display both peak and bottom hold values, Selectable from 5 variations Bar LED monitor: Excess gain displayed (85% to 115% in 7 steps), Scaling display
Detection mode		Light intensity (area detection possible, automatic sensitivity-tracking function provided)
Timer function		OFF-delay timer/ON-delay timer/One-shot timer/ON-delay timer + OFF-delay timer/ON-delay timer + One-shot timer, selectable Timer duration selectable： 0.1 ms to 9,999 ms, Maximum error against the setting value： ±10% max.
Control output		PNP open-collector 24 V, 100 mA max.^*1 (main unit only)/20 mA max. (when the expansion unit(s) is connected), Residual voltage: 1 V max.
External inputy		Input time: 2 ms (ON)/20 ms (OFF) min.^*2
Unit expansion		Up to 16 expansion units can be connected (a total of 17 units). Note that the 2-output type should be counted as two units.
Number of interference prevention units	Normal operation	HIGHSPEED：0 FINE：4 TURBO/SUPER/ULTRA/MEGA：8台
Size		30.3 mm (H) x 9.8 mm (W) x 71.8 mm (D)
Rating	Power voltage	12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
	Power consumption	Normal: 750 mW max. (Using 24 V, 31 mA max., using 12 V, 40 mA max.)/ Power saving 580 mW max. (Using 24 V, 24 mA max., using 12 V, 28 mA max.)^*3
Environmental resistance	Ambient light	Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.
	Ambient temperature	-10 to +55 °C (No freezing)^*4
	Relative humidity	35 to 85 % RH (No condensation)
	Vibration resistance	10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
	Shock resistance	500 m/s², 3 times in each of the X, Y, and Z directions
Case material		Polycarbonate
Accessories		N/A
Weight		Approx. 80 g
