VitalMRO is Authorized Distributor for This Product.

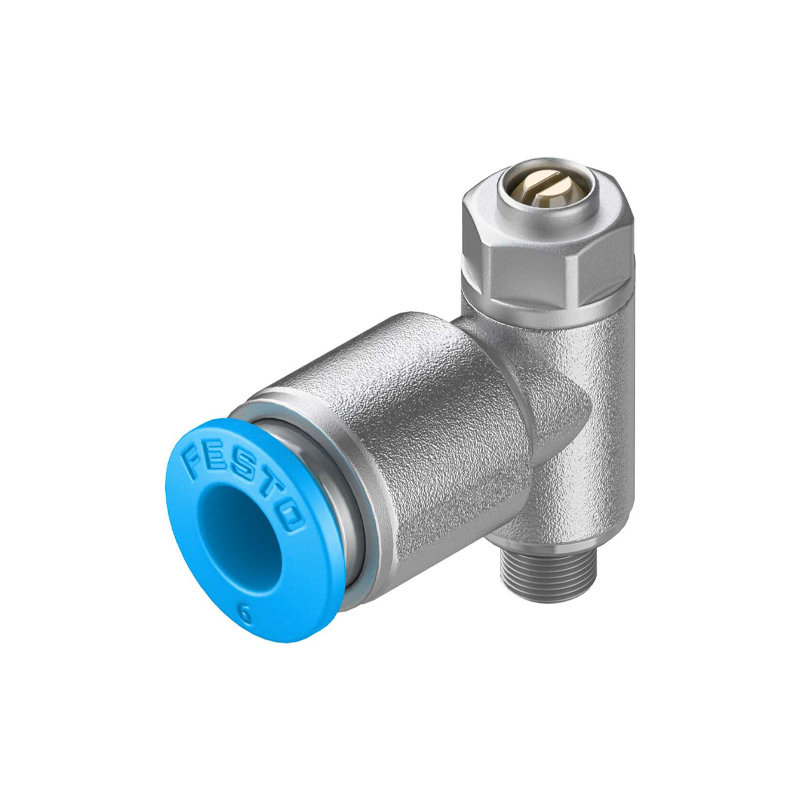

| Valve function | Supply air throttle check valve function |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | M5 |
| Setting element | slotted screw |
| Fastening type | Screwable |
| Normal nominal flow in one-way flow control [l/min] | 115 |
| Normal nominal flow in check valve direction [l/min] | 70 to 110 |
| ambient temperature [°C] | -10 to 60 |
| installation position | arbitrary |
| Normal flow In one-way flow control 6 -> 0 bar [l/min] | 170 |
| Normal flow In check valve direction 6 -> 0 bar [l/min] | 160 to 200 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Medium temperature [°C] | -10 to 60 |
| Maritime classification | see Certificate |
| Product weight [g] | 13,0 |
| Stud material | Brass |
| Material information | RoHs compliant |
| Seals material | NBR |
| Regulation screw material | Brass |
| Swivel connection material | Chromatised Zinc pressure cast |
| Operating pressure complete temperature range [bar] | 0.2 to 10 |
| Nominal tightening torque [Nm] | 0,8 |
| Tolerance to nominal tightening torque | ± 10 % |
| Sleeve material | POM |
| Weight | 13,0 g / Pcs |
| RoHS compliant | Yes |
| Manufacturer | Festo |
