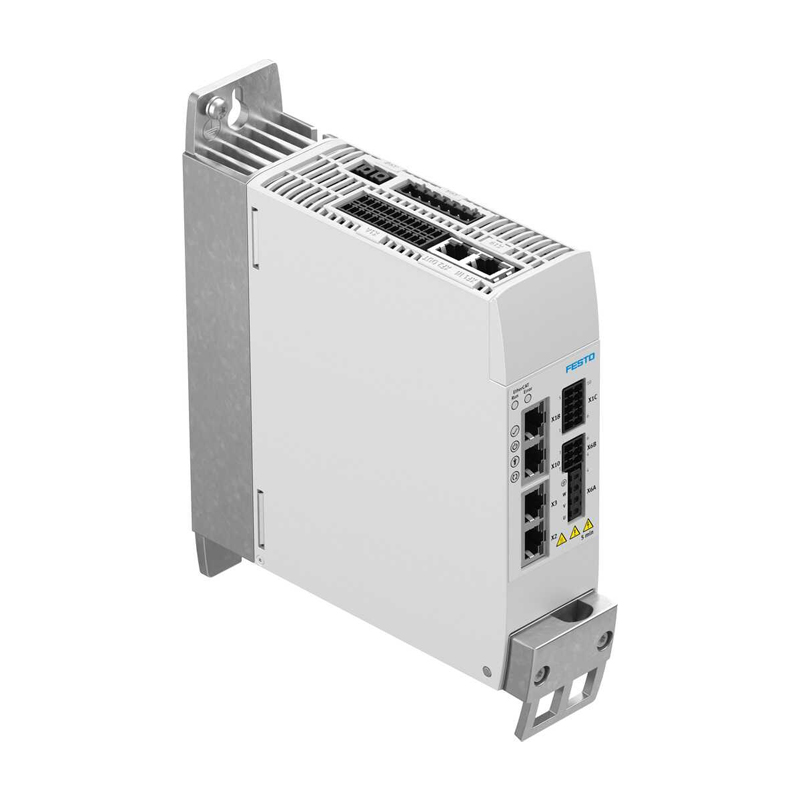

FESTO CMMT-AS-C2-3A-PN-S1 Servo Drive

Mobile phone purchase

Condition：New

Brand：FESTO

Model：CMMT-AS-C2-3A-PN-S1

Code：CMMT-AS-C2-3A-PN-S1FES

Weight：1.000 KG

MOQ：0

Add To Cart

Buy Now Request Quote

Add to Order Template Become Supplier

ETA Delivery:

Shipping time may vary.
VitalMRO rep will advise.

Local Stock:

VitalMRO Group Stock:

Offer Price:

Quantity:

Add To Cart

Product Filter

Clear All

Valve Function

5/2

Voltage

24AC

24VDC

DC 24V

VitalMRO

Related classification

Power Transmission

Air Control

Filtration and Cleaning

Other similar brands

New
Recom
Hot

GATES 180XL PowerGrip Belt 20817DS020, 20817DS021

Login To View
PANASONIC X004-064 Bushing

Login To View
SENATOR SEN5829220K 1/2" Sq.Dr. 23 Pc Metric Socketset

Login To View

SCHNEIDER ATV610D18N4 Inverter Variable Speed Drive 8.5KW/25HP 380-415V IP20

Login To View
SCHNEIDER ATV310H075N4E Inverter, 3Phase, 0.75KW 1HP 380-460V

Login To View
SCHNEIDER ELECTRIC XVBC2B4 Tower Light LED - Red, Ø70, 24 V AC/DC

Login To View

SCHNEIDER ATV610D18N4 Inverter Variable Speed Drive 8.5KW/25HP 380-415V IP20

Login To View
SCHNEIDER ELECTRIC XB5-AD33C Selector Switch

Login To View
SCHNEIDER ATV610D75N4 Speed Drive 75kW 3 Phases 380-415 V

Login To View

Recent browse

Clear

DANFOSS KP35-060-113391 Pressure Switch

USD202.27

Products Detail
Products Q&A

Mobile phone purchase

Add To Cart

Price：

Quantity：

Inventory PcsAccount Inventory Pcs

Confirm cancel

Products Detail

Replacement Suggest：

VitalMRO is Authorized Distributor for This Product.

Type code: CMMT-AS
Fieldbus interface, function: Bus connection, incoming/forwarding
EtherNet/IP slave
KC characters: KC EMC
Fieldbus interface, transmission rate: 100 Mbit/s
Mounting position: Free convection
Vertical
Information on max. installation height: 1% power reduction/100 m above 1000 m.
Ethernet interface, protocol: TCP/IP
Ethernet interface, function: Parameterization and commissioning
Encoder interface, function: EnDat® 2.1 encoder
EnDat® 2.2 encoder
Hiperface encoder
Incremental encoder
Nikon
SIN/COS encoder
Fieldbus interface, connection technology: RJ45
Mains types: TT
TN
IT
Protection class: I
Encoder interface 2, function: Incremental encoder
SIN/COS encoder
Fieldbus interface, protocol: EtherNet/IP
Overvoltage category: III
Synchronization interface, function: Encoder emulation A/B/Z
Encoder input A/B/Z
Fieldbus interface, connection type: 2x socket
Number of high-speed switching outputs: 2
Number of floating switching outputs: 1
Number of inputs for motor temperature sensor: 1
Number of diagnostic outputs: 2
Max. current of the floating switching outputs: 50 mA
Max. continuous output of the external braking resistor (IEC): 180 W
Pulse energy for braking resistor: 230 Ws
Max. output current of holding brake: 1 A
Number of high-speed logic inputs: 2
System voltage to EN 61800-5-1: 300 V
Max. short circuit protection of mains: 100 kA
Braking resistor nominal power (IEC): 23 W
Max. voltage drop from logic supply to brake output: 0.8 V
Number of safe 2-pin inputs: 2
Time resolution of high-speed logic inputs: 1 µs
Max. current consumption for logic supply with parking brake: 1.5 A
Max. installation height: 2000 m
Time resolution of high-speed switching outputs: 1 µs
Based on norm: EN 50581
EN 60204-1
EN 61508-1
EN 61508-2
EN 61508-3
EN 61508-4
EN 61508-5
EN 61508-6
EN 61508-7
EN 61800-2
EN 62061
Conforms to standard: EN 61800-3
EN 61800-5-1
EN 61800-5-2
EN ISO 13849-1
Active PFC: no
Controller operating mode: Cascade control
P position controller
PI speed controller
PI current regulator for F or M
Profile operation with block mode and direct mode
Interpolating mode via fieldbus
Synchronous operating modes
Reference travel
Setup mode
Autotuning
Mode of operation: Field-oriented regulation
Position resolution 24 bit/rev.
Sampling rate 16 kHz
PWM with 8 or 16 KHz
Vector modulation with 3rd harmonic
Real-time data acquisition
2x input capture (x, v, F)
2x output trigger (x, v, F)
2x position sensor input
1x SYNC interface for encoder emulation or encoder input
Line filter: Integrated
Safety function: Safe brake control (SBC)
Safe torque off (STO)
Safe stop 1 (SS1)
Safety integrity level (SIL): Safe brake control (SBC)/SIL 3/SILCL 3
Safe torque off (STO)/SIL 3/SILCL 3
Performance Level (PL): Safe brake control (SBC)/category 3, performance level e
Safe torque off (STO)/category 4, performance level e
Display: LED green/yellow/red
Control elements: Optional: CDSB operating unit
Output frequency: 0 Hz ... 599 Hz
Output voltage range AC: 3x (0 – input) V
Braking resistor, external: 100 Ohm ... 160 Ohm
Braking resistor, integrated: 100 Ohm
Diagnostic coverage: 97 %
Characteristics of digital logic outputs: Freely configurable in some cases
Not galvanically isolated
Diagnostic outputs in some cases
Hardware fault tolerance: 1
Impedance of setpoint input: 70 kOhm
Pulse power of braking resistor: 1.6 kVA
Max. current of digital logic outputs: 20 mA
Max. length of motor cable without ext. mains filter: 25 m
Max. peak current duration: 2 s
Max. DC link voltage: 395 V
Nominal operating voltage AC: 230 V
Input voltage range AC: 100 V ... 230 V
Controller nominal power: 350 VA
Nominal voltage, logic supply DC: 24 V
Nominal voltage, load supply DC: 320 V
Nominal current load supply: 2.8 A
Nominal current per phase, effective: 2 A
Mains frequency: 48 Hz ... 62 Hz
Nominal operating voltage phases: 1-phase
SFF safe failure fraction: 99 %
Peak power: 1000 VA
Peak current, load supply: 8.4 A
Peak current per phase, effective: 6 A
Surge resistance: 6 kV
Max. current consumption for logic supply without clamping brake: 0.5 A
Max. current consumption for logic supply with clamping brake and I/O: 2.3 A
Contamination level: 2
Load supply permissible range: -20 %/+15 %
Permissible range of logic voltage: ± 20 %
Permissible voltage fluctuations: -20 % / +15 %
Certificate issuing authority: German Technical Control Board (TÜV) Rheinland 01/205/5640.00/18
UL E331130
CE marking (see declaration of conformity): As per EU EMC directive
as per EU machinery directive
As per EU low voltage directive
As per EU RoHS directive
Storage temperature: -25 °C ... 55 °C
Relative air humidity: 5 - 90 %
Non-condensing
Degree of protection: IP20
Ambient temperature: 0 °C ... 50 °C
Note on ambient temperature: Above an ambient temperature of 40 °C, the power must be reduced by 3%/°C.
UL-ambient temperature: 0 °C ... 40 °C
Certification: RCM compliance mark
German Technical Control Board (TÜV)
c UL us - Listed (OL)
Product weight: 1300 g
Number of analog setpoint inputs: 1
Number of digital logic outputs 24 V DC: 6
Number of digital logic inputs: 12
Communication profile: DriveProfile
Process interfacing: Adjustable-Speed Drives
Drives with positioning function
Logic input specification: Based on IEC 61131-2, type 3
Work range of logic input: -3 V ... 30 V
Work range of setpoint input: ± 10 V
Operating range of analog inputs: ± 10 V
Encoder interface output, characteristics: 1 MHz maximum output frequency
max. 16384 ppr
Encoder interface input, characteristics: 1 MHz maximum output frequency
max. 16384 ppr
