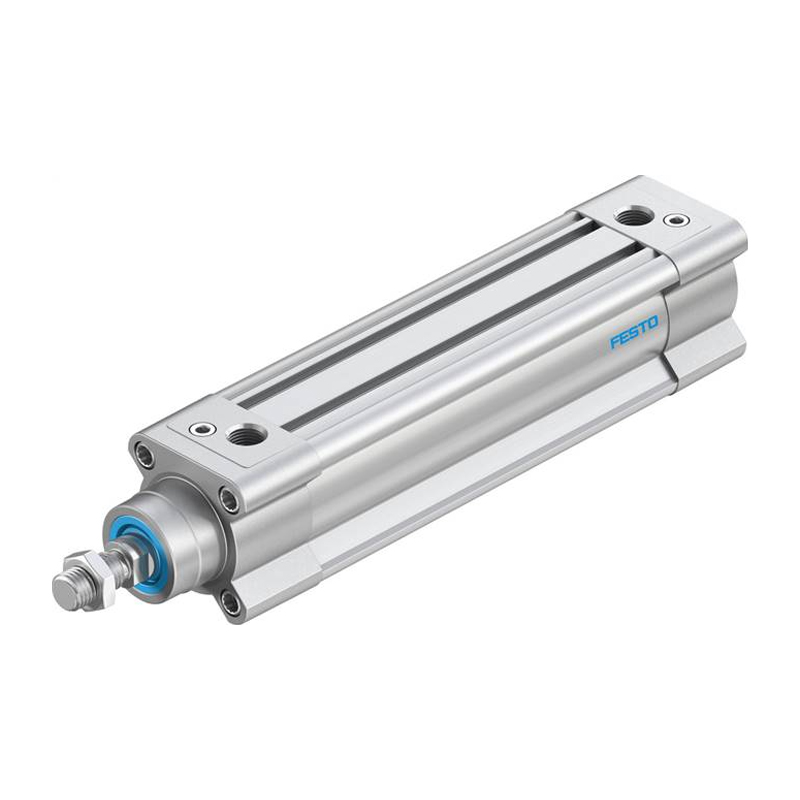

| Stroke [mm] | 125 |
| Piston diameter | 40 mm |
| Piston rod thread | M12x1,25 |
| Dampening | PPV: Pneumatic dampening both sides adjustable |
| installation position | arbitrary |
| Complies to standard | ISO 15552 |
| Piston rod end | Male thread |
| Construction set up | Piston piston rod profile tube |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Operating pressure [bar] | 0.6 to 12 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 0,7 |
| Dampening length [mm] | 19 |
| Theoretical force at 6 bar, Return flow [N] | 633 |
| Theoretical force at 6 bar, flow [N] | 754 |
| Moving mass at 0 mm stroke [g] | 205 |
| Weight supplement per 10 mm stroke [g] | 37 |
| Base weight at 0 mm stroke [g] | 740 |
| Supplement moved mass per 10 mm stroke [g] | 16 |
| Fastening type | With female thread With Accessories Selectively: |
| Pneumatic connection | G1/4 |
| Material information | RoHs compliant |
| Cover material | Aluminium die casting Coated |
| Seals material | TPE-U(PU) |
| Piston rod material | High-alloyed steel |
| Cylinder tube material | Aluminium wrought alloy Smooth anodised |
| Weight | 1,2 kg / Pcs |
| GTIN | 4052568016722 |
| Customs duty number | 84123100 |
| RoHS compliant | Yes |
| Manufacturer | Festo |
